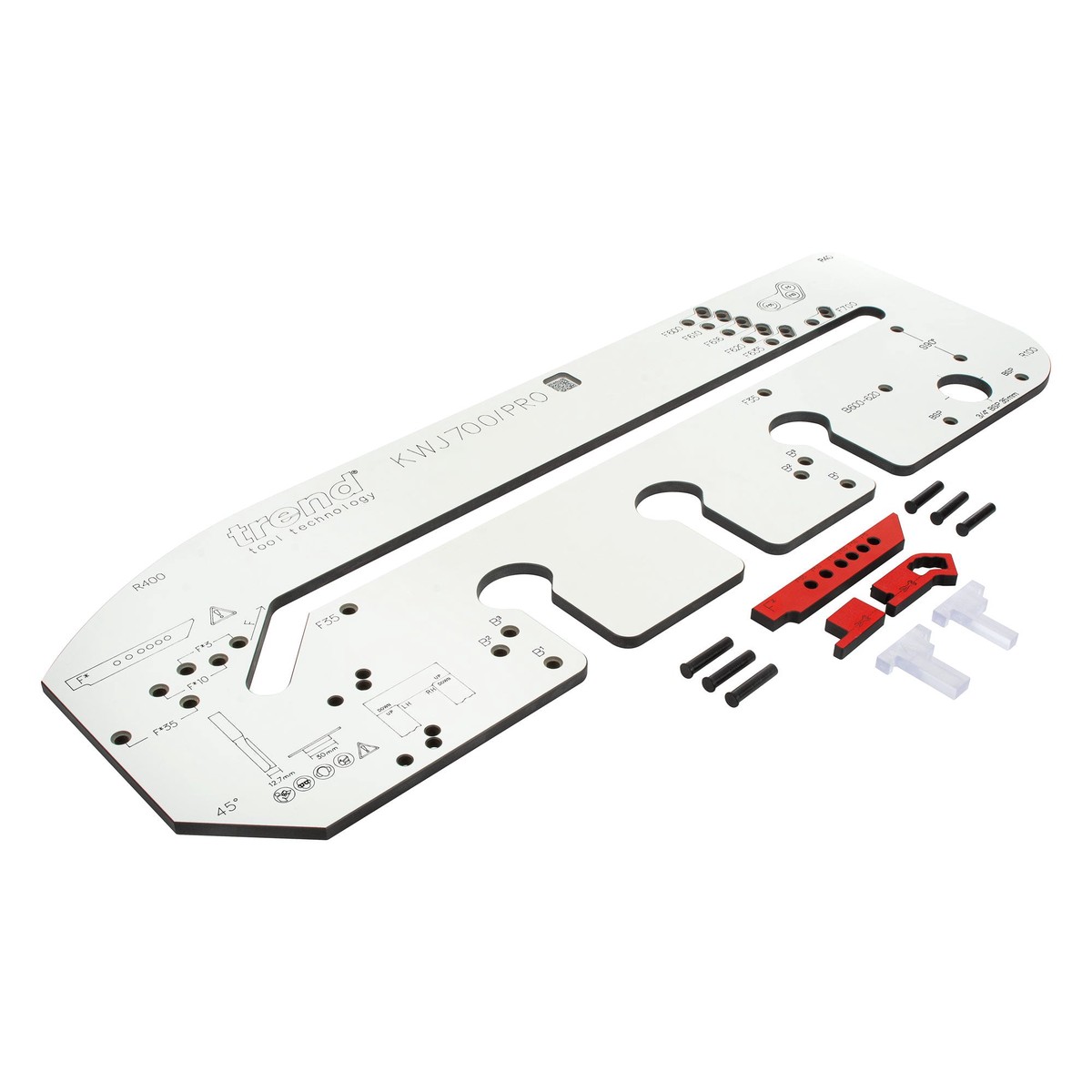

Trend Tools KWJ700/PRO 700Mm Professional Multi-Material Worktop Jig

A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops.

• Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.
• Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.
• Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.
• Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika Slimline connection bolts.
• Indexed Backsets for 600, 610, 616, 620, 635, and 700mm worktops for standard 90 installations.
• 400mm Radius for breakfast bar and peninsula trimming.
• R100mm, R40mm and 45 Corners for edge finishing.
• 90 Straight Cuts for accurate skimming and trimming.
• 35mm Hinge / BSP Recess for surface-mount monobloc tap and concealed hinge installation.

Specifications

• Length=1010 mm
• Width=340 mm
• Thickness=12 mm
• Weight=5.5 kg
• Insets=3/10/35 mm
• Backsets=600/610/616/620/635/700 mm
• Bolt Recesses=3
• Bolt Recess Centres=175 mm
• Corner Radius=40/100 mm
• Peninsular Radius=400 mm
• Requires:
• Guide Bush=30 mm
• Router Cutter=12.7mm dia. x 50 mm length
• Plunge Router=1/2inch
• F-Clamps=min. 80 mm throat x 2
