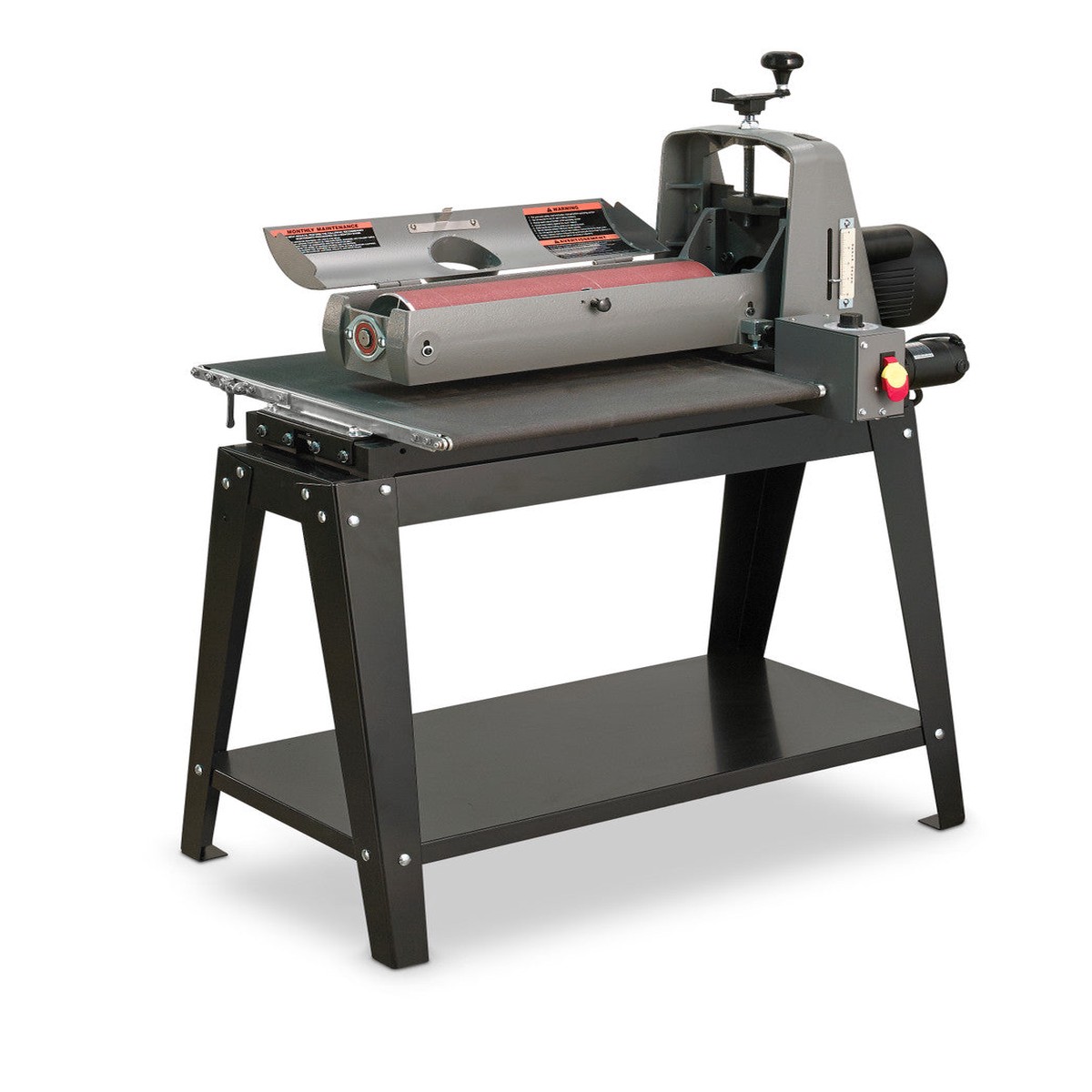

SUPERMAX 19 38 DRUM SANDER

Perfect for the small shop or woodworking enthusiast, the SuperMax 19-38 Drum Sander reduces the tedium of hand sanding, speeds up the sanding process, and produces more consistent results! Find out how it compares to other brands, watch videos, and more! Machine Overview. The 19-38 Drum Sander comes standard on the Open Stand. The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase. Award-Winning: The 19-38 Drum Sander was awarded 5 out of 5 stars by WOOD magazine and received the Editors Pick award from American Woodworker magazine. Exceptional SuperMax Features. Weve addressed issues common with other drum sanders by adding five features that are exclusive to our 19-38 machines. No other drum sander on the market has these features! Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy. Indexed alignment setting Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19, the index lever will properly adjust the conveyor for flawless wide sanding. Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments. Extra-wide conveyor to properly support stock over 19 wide. The conveyor table is 22 wide to add support to the workpiece. Drum will never go out of alignment The drum carriage is bolted to the base, preventing any movement or alignment issues. Additional Features: INTELLISAND Technology: Automatically adjusts conveyor speed based on load. Prevents gouging, damaging, or burning stock. Provides consistent finish even with varying grain pattern and density. Greatly increases abrasive planning and dimensioning speed. Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no flex in conveyor, guaranteeing flatness to less than .010 across the width of the sander. Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner. Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap. The easiest access to the abrasive fastening system of any drum sander! Extra-wide space to access fasteners to eliminate the need for special tools. The self-cooling drum prevents overheating and extends abrasive life. Tension rollers are adjustable in height and hold down pressure, eliminating snipe. Excellent dust extraction as dust cover is formed to shape of the drum. Metal, not plastic, is formed to maximize airflow and dust extraction. Heavy-duty cast iron construction for strength, rigidity, and reduced vibration.

Specifications:
Sanding Capacity:
Maximum Width (in): 38 (two passes)
Minimum Length (in): 2-1/4
Maximum Thickness (in): 4
Minimum Thickness (in): 1/32
Dimensions (in): 27D x 46W x 52H (on stand)
Drum (in): 5 x 19 extruded aluminum
Drum Speed: 1740 RPM
Dust Hood: 1- 4 vacuum port min. 600 CFM recommended.
Conveyor Motor: 43 in.-lb. torque, direct drive D.C. motor, ranged variable 0-10 FPM. Drive Motor (TEFC): 1-3/4 HP
Power Requirements: 110 V, 15 amp

Shipping Weight (lbs): 286 (3 boxes incl. stand).

Box 1
Shipping Weight: 88 Kg (194 lbs)
Box Dimensions: 42L x 23W x 16H

Box 2
Shipping Weight: 20.4 Kg (45 lbs)
Box Dimensions: 21L x 21W x 31H

Box 3
Shipping Weight: 20.4 Kg (45 lbs.)
Box Dimensions: 38L x 21W x 6H
