Name: m16 X 1.5 1-1/2" OD HSS Round Die
SKU: YOQL9777679785
Availability: InStock

Hardware

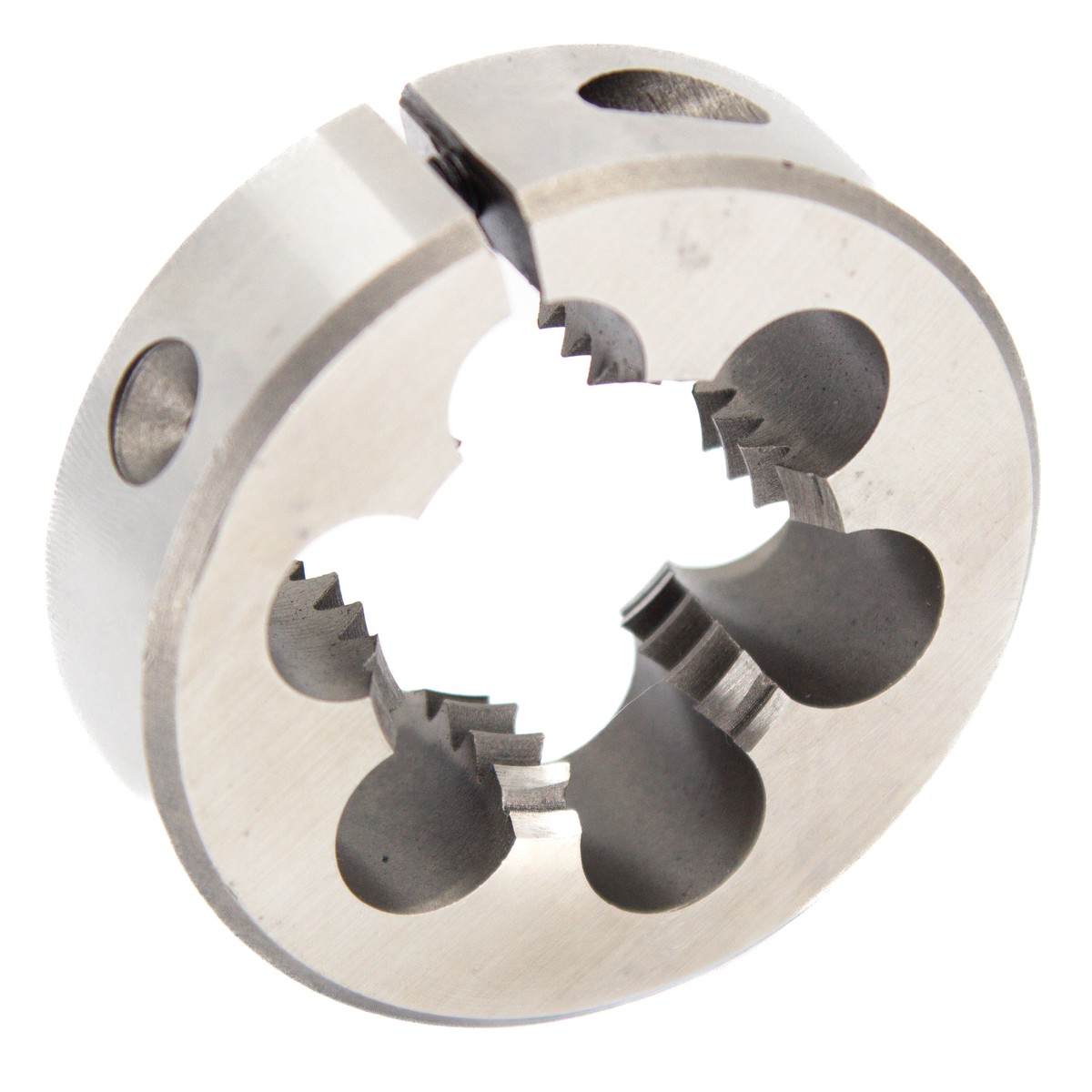

m16 X 1.5 1-1/2″ OD HSS Round Die

Address: California, United States (US)
Shop Hours: 6:00 - 22:00
Email: <a href="/cdn-cgi/l/email-protection#c6b5a3b4b0a3b486a4a3aab2a5aea7afa8b6afb6a3e8a5a9ab" style="word-break: break-all;"> <span class="__cf_email__" data-cfemail="4d3e283f3b283f0d2f2821392e252c24233d243d28632e2220">[email&#160;protected]

SKU:YOQL9777679785
Category:Hardware

Free shipping on orders over $40!
Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
Return within 30 days. Duties & taxes non-refundable.

Description
Reviews (0)

Product Description
HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Brand Drill America
Part Number DWTMR112-16X1.5
Size m16 X 1.5
Material High Speed Steel
Finish Uncoated (Bright)
Size m16
Outer Diameter 1-1/2″
Corresponding Die Stock 1-1/2″
Shape Round
