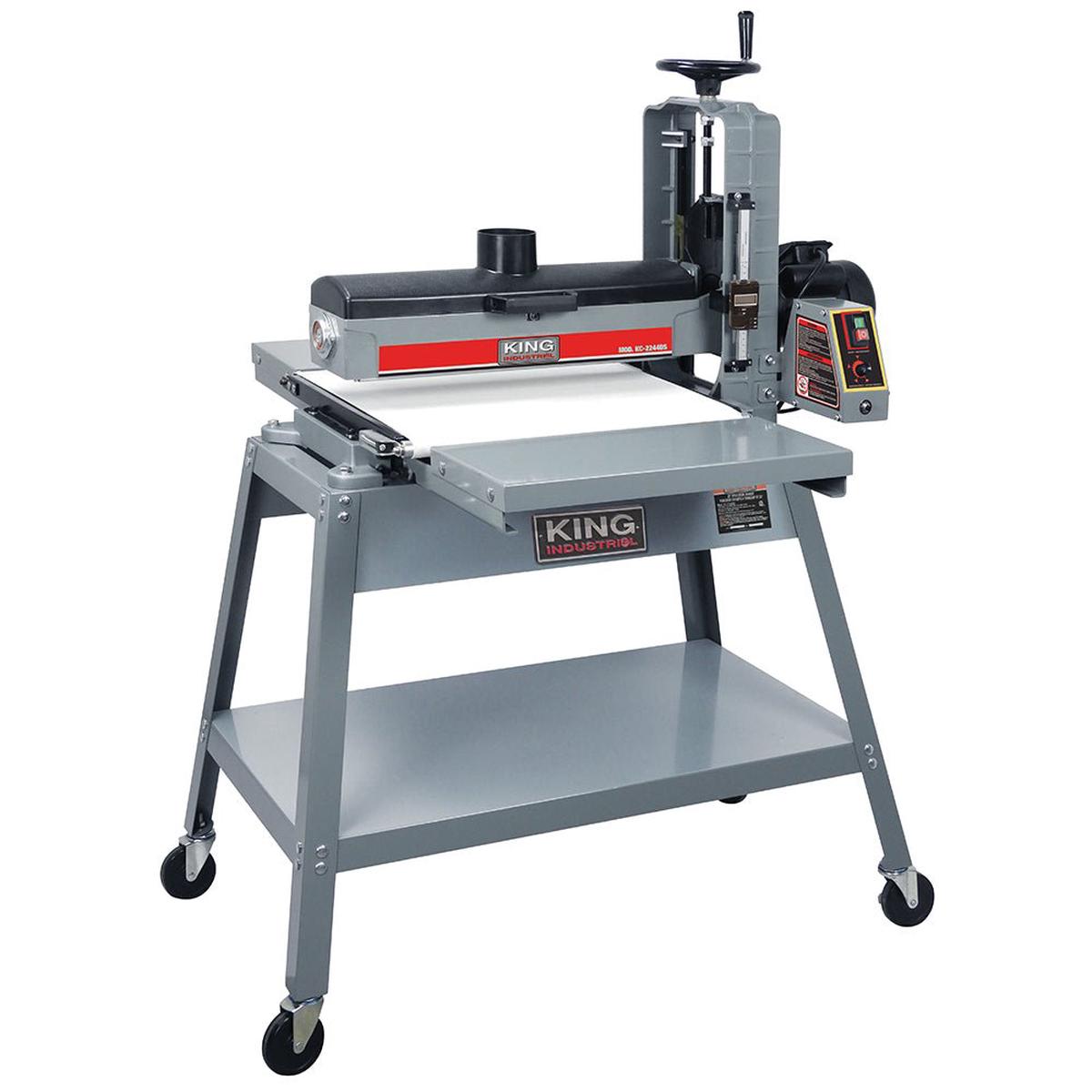

KING CANADA KC-2244DS – 22” OPEN DRUM SANDER

KING CANADA KC2244DS 22 Open Drum Sander is a powerful and efficient sanding solution for woodworking professionals seeking versatility and throughput. Powered by a robust 1.75HP motor and featuring die-cast, ball-bearing construction, this open-ended design sands up to 44 wide in just two passes using a single 22 drum. Its easy-loading, clamped sanding belt system and adjustable conveyor tracking simplify setup, while the 4 dust chute and rear hose hook keep your workspace clean. Mounted on a mobile metal stand with caster wheels, this sander delivers mobility, precision, and productivity.

Features

• Powerful 1.75 HP motor
• All ball bearing die cast construction
• Conveyor belt tracking is easy to adjust
• Easy clamping sanding belt loading system
• 4″dust chute and rear hook to support dust collection hose
• Comes with metal stand with 4 caster wheels for mobility

Specifications

• Drum motor: 1.75 hp, 15 amp.
• Belt feed motor: 1/8 hp
• Maximum width of sanding: 2 x 22″
• Maximum sanding capacity per pass: 1/64″
• Maximum thickness of board: 5″
• Maximum thickness of board: 1/8″
• Minimum board length: 2-1/4″
• Belt: 3″ x 127-3/4″
• Feeding speed: 0-31 sipm
• Number of sanding drums: 1
• Drum speed: 1,720 rpm
• Voltage: 110v, 60 hz, 1 phase
• Assembled dimensions (LxWxH) / weight: 48″ x 43-3/8″ x 61-1/2″ / 257 lbs
• Package dimensions (LxWxH) / weight: 45-5/8″ x 25-5/8″ x 26″ / 273 lbs
