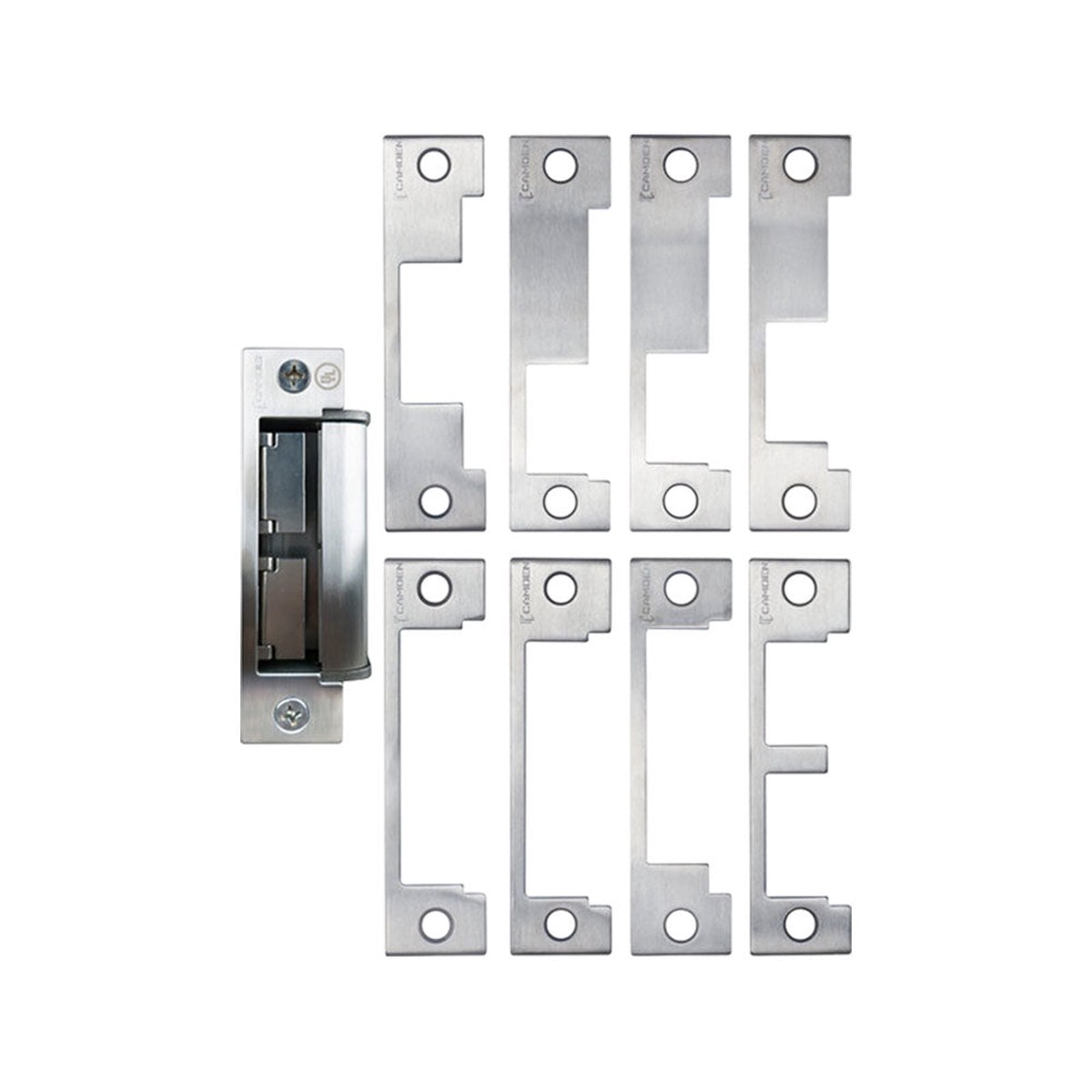

Camden – CX-ED1799L-8 – Mortise and Cylindrical – Latch Monitoring – Grade 1 – 8 Faceplates

Camden – CX-ED1799L-8 – Mortise and Cylindrical – Latch Monitoring – Grade 1 – 8 Faceplates

Camden – CX-ED1799L-8 – Mortise and Cylindrical – Latch Monitoring – Grade 1 – 8 Faceplates

Original price was: $492.81.Current price is: $147.84.
  • SKU:VNHO713427199710
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Camden – CX-ED1799L-8 – Mortise and Cylindrical – Latch Monitoring – Grade 1 – 8 Faceplates

Camden CX-ED1799L Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in dual latch monitoring, 8 stainless steel faceplates and ‘Universal’ performance, including field selectable voltage and fail safe/fail secure operation.

Features:
  • For mortise and cylindrical locksets.
  • A range of strike and faceplate packages for latchbolts and deadbolts.
  • Faceplates also available in black architectural finish (BHMA 622, US19)
  • Selectable fail safe / fail secure.
  • Selectable 12/24V AC/DC.
  • 2 latch and deadbolt monitoring switches.
  • Magnetic door position switch.
  • Strike power monitor.
  • Easy fit connectors.
Specification:
Voltage 12/24 V AC/DC
Current Draw 300mA @ 12V AC/DC
150mA @ 24V AC/DC
Static Strength 1,500 Lbs.
Dynamic Strength 70 Ft-Lbs
Endurance 1,500,000 cycles (Factory Tested)
250,000 cycles (UL Verified)
Mode Field Selectable Fail Safe/Fail Secure
Operation AC-Buzz, DC-Silent
Duty Continuous
Lock Monitor Status 2 x SPST, 100mA @ 24V DC, Resistive
Strike Monitor Status SPDT, 100mA @ 24V DC, Resistive
Dimensions 4-7/8”H x 1-5/8”W x 1-21/32”D
(124mm x 41mm x 42mm)
Download:
  • Installation Instruction
