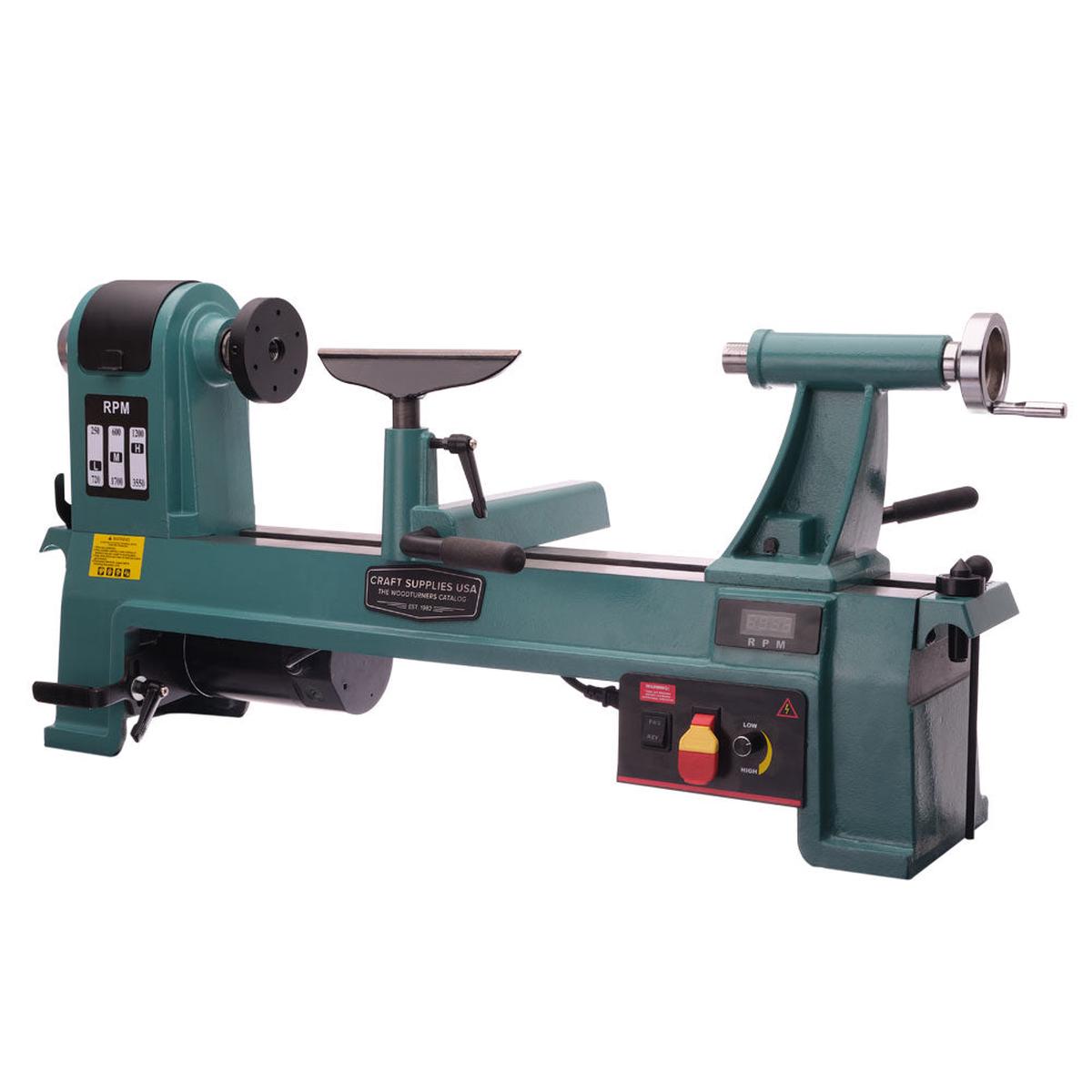

Artisan 1420 EVS Mini Lathe

The new Artisan 1420 Mini Lathe sets a new standard for mini lathes. When compared to other similar capacity lathes, it is hands-down the most robust and dependable full-featured mini-lathe available at any price. For over 18 months, Mike Nish put this lathe through the paces to make sure it was built to withstand heavy use while providing professional-level performance and durability that you can count on.

Be sure to check out our video below for a complete rundown on why the Artisan 1420 EVS Mini Lathe should be your lathe of choice.

Features:

• Powerful 750w variable speed drive provides additional torque under increased load
• Forward/Reverse operation
• Extensive 250 to 3,500 rpm speed range
• Handles heavy work and 5-1/2″ chucks, like the Vicmarc and Oneway, with ease
• Super quiet during operation, even under heavy load
• Large, easy-to-read digital spindle speed display
• 9/16″ thick highly polished bedways for smooth banjo and tailstock adjustments
• 1″ x 8 tpi spindle accepts common chucks and accessories
• 1″ Tool rest post allows you to use most brands of tool rest posts and accessories
• Extra-thick cast iron construction throughout for strength and vibration-free operation
• Large, dual heavy-duty bearings built to last a lifetime
• Extended nose cone for added clearance between the work and headstock
• Oversize locking levers on the tailstock and banjo for positive lock
• 24 position indexing head with easy-to-read stamped markings
• Spring-loaded spindle lock on rear of the headstock for one-hand operation
• Heavy cast iron tool rest banjo
• Easy access 3 step pulley
• Wide footprint with adjustable rubber feet for stability
• Flip-up cover for belt access
• Thick rubber feet reduce vibration
• Dual accessory tool caddies for wrenches, centers, and accessories.
• Optional Adjustable Floor Stand available

Includes 3 Year Warranty*
The Artisan Mini Lathe is guaranteed to be free from defects in materials and workmanship for 3 years from the date of purchase. This warranty applies only to the original retail purchaser and is non-transferable. This warranty does not apply to defects resulting from misuse, abuse, negligence, alteration, or lack of maintenance. Excludes commercial, industrial, or educational purposes.

Specifications

• 1 HP Motor
• Between Centers Capacity – 20″
• Capacity Over Bed – 14″
• Head/Tailstock – 2MT
• Headstock Spindle Size – 1″x 8TPI
• Tailstock Travel – 3.5″
• Tailstock – Self-ejecting
• Tool Rest Post Size – 1″
• Overall Size – (L x W x H) 41″ x 14.5″ x 19″
• Voltage – 115v single phase
• Weight – 115 lbs

Accessories included with lathe

• 4″ Faceplate
• 8″ Tool Rest (1″ post diameter)
• Revolving cup center
• 4-prong Drive center
• Adjustable rubber feet (installed)
